  • IK-51B 350kg capacity Solid Steel Flange Mount Ball Caster

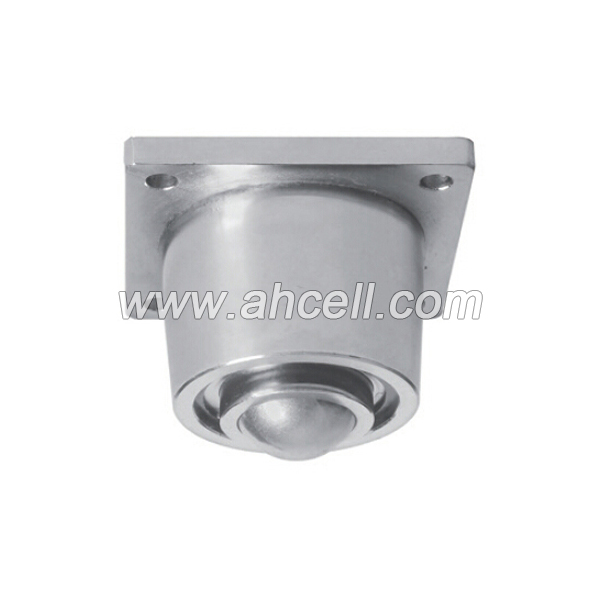

IK-51B 350kg capacity Solid Steel Flange Mount Ball Caster

IK-51B 350kg capacity Solid Steel Flange Mount Ball Caster

  • Main Ball Diameter: 51mm
  • Suggested Dynamic Load: 300kg
  • Max. Dynamic Load: 350kg
  • Net Weight: 5.3kg
  • Product description: IK-51B Down facing inverted ball transfer unit offers smooth and reliable ball rotation for transfer systems. Heavy duty solid steel construction ensures precision performance and exceptional durabili
  • INQUIRY

51mm Ball, Flanged Ball Transfer Caster

IK-B Flanged Solid Steel Ball Caster

Model

d

L

H

h1

h2

P

a

Maximum Loading(kg)

Net weight

















Suggested

Breaking

(kg)

IK-51B

51.0

130

100

13.0

12.0

102

11.0

300

350

5.300


A Leading ball transfer units Manufacturer in China
