  • SD-30 300kg capacity Pop-up Flange Mount Solid Steel Ball Transfer Unit

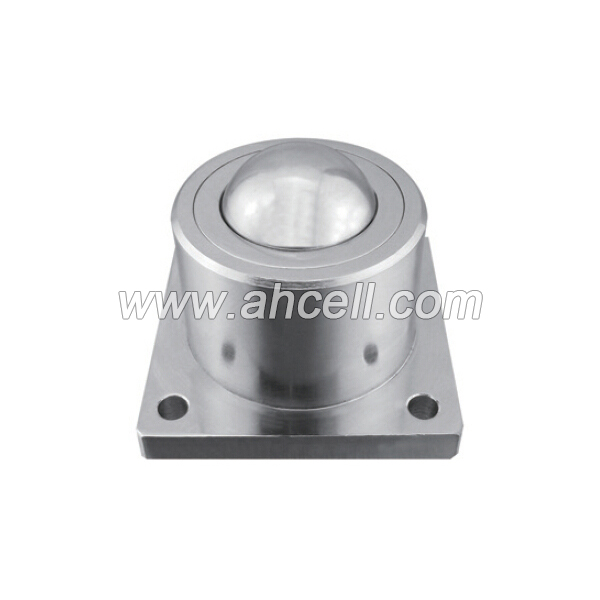

SD-30 300kg capacity Pop-up Flange Mount Solid Steel Ball Transfer Unit

SD-30 300kg capacity Pop-up Flange Mount Solid Steel Ball Transfer Unit

  • Main Ball Diameter: 30mm
  • Suggested Dynamic Load: 250kg
  • Max. Dynamic Load: 300kg
  • Net Weight: 1.2kg
  • Product description: The SD-30 flange mount solid steel ball transfer unit is designed for reliable material handling in industrial applications. Solid machined steel body from CNC turned bar stock delivers maximum streng
  • INQUIRY

30mm Ball, Solid Steel ball transfer unit

SD Flanged <a href=https://www.balltransfersystem.com/product.html target='_blank'>ball transfer unit</a> Roller


Model

d

D

H

h1

h2

P

L

a

Maximum Loading(kg)

Net weight

Suggested

Breaking

(kg)

SD-30

30.2

54

49

6.5

6

54

68

6.5

250

300

1.200
