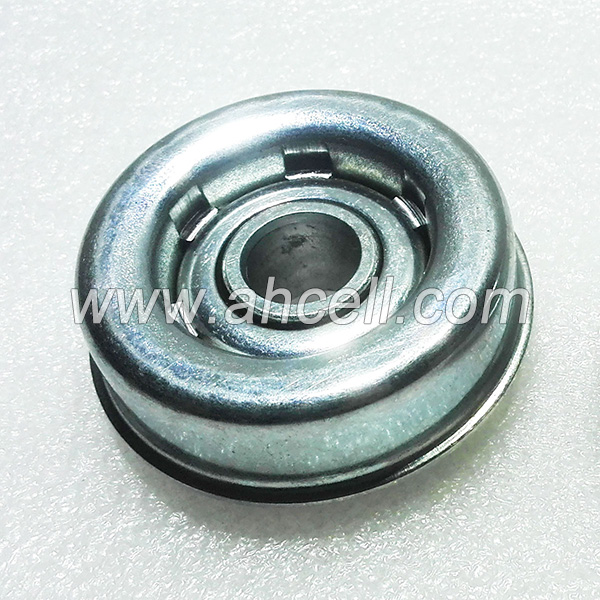

Home > Omnitrack Series
Only parts of Models listed here:
|
Model |
D |
t |
D1 |
D2 |
D3 |
d |
H |
H1 |
H2 |
|
|
|
Tube thickness |
|
|
|
|
|
|
|
|
T2508-0.8 |
25.0 |
0.8 |
23.4 |
12.0 |
21.0 |
8.1 |
15.0 |
11.0 |
4.0 |
|
T2508-1.0 |
25.0 |
1.0 |
23.0 |
12.0 |
21.0 |
8.1 |
15.0 |
11.0 |
4.0 |
|
T3812-1.0 |
37.8 |
1.0 |
36.0 |
16.0 |
24.0 |
12.1 |
16.0 |
12.0 |
4.0 |
|
T3812-1.2 |
37.8 |
1.2 |
35.6 |
16.0 |
24.0 |
12.1 |
16.0 |
12.0 |
4.0 |
|
T3812-1.5 |
37.8 |
1.5 |
35.0 |
16.0 |
24.0 |
12.1 |
16.0 |
12.0 |
4.0 |
|
T5012-1.0 |
49.8 |
1.0 |
48.0 |
17.0 |
28.0 |
12.1 |
16.0 |
12.0 |
4.0 |
|
T5012-1.2 |
49.8 |
1.2 |
47.6 |
17.0 |
28.0 |
12.1 |
16.0 |
12.0 |
4.0 |
|
T5012-1.5 |
49.8 |
1.5 |
47.0 |
17.0 |
28.0 |
12.1 |
16.0 |
12.0 |
4.0 |
|
T5015-1.0 |
49.8 |
1.0 |
48.0 |
19.8 |
31.0 |
15.1 |
16.0 |
12.0 |
4.0 |
|
T5015-1.2 |
49.8 |
1.2 |
47.6 |
19.8 |
31.0 |
15.1 |
16.0 |
12.0 |
4.0 |
|
T5015-1.5 |
49.8 |
1.5 |
47.0 |
19.8 |
31.0 |
15.1 |
16.0 |
12.0 |
4.0 |
|
T5712-1.0 |
56.8 |
1.0 |
55.0 |
17.0 |
28.0 |
12.1 |
16.0 |
12.0 |
4.0 |
|
T5712-1.2 |
56.8 |
1.2 |
54.6 |
17.0 |
28.0 |
12.1 |
16.0 |
12.0 |
4.0 |
|
T5712-1.5 |
56.8 |
1.5 |
54.0 |
17.0 |
28.0 |
12.1 |
16.0 |
12.0 |
4.0 |
|
T5715-1.0 |
56.8 |
1.0 |
55.0 |
17.0 |
28.0 |
15.1 |
16.0 |
12.0 |
4.0 |
|
T5715-1.2 |
56.8 |
1.2 |
54.6 |
17.0 |
28.0 |
15.1 |
16.0 |
12.0 |
4.0 |
|
T5715-1.5 |
56.8 |
1.5 |
54.0 |
17.0 |
28.0 |
15.1 |
16.0 |
12.0 |
4.0 |
