  • BCHM MISUMI Thread Bolt Round Head Stud Type Ball Rollers
BCHM MISUMI Thread Bolt Round Head Stud Type Ball Rollers

BCHM MISUMI Thread Bolt Round Head Stud Type Ball Rollers

  • Models: BCHM 8 10 12 15 16 19 20
  • Type: BCHM BCHP
  • Material: Stainless Steel
  • Ball size: 8 10 12 15 16 19 20
  • Product description: BCHM Stud Type Ball Rollers, MISUMI Thread Bolt Ball Caster, Round Head Stainless Steel Ball Transfer Unit, 8 10 12 15 16 19 20 Ball
  • INQUIRY

Thread Bolt Stud Misumi Type Ball Transfer Units

BCHM Stainless Steel MISUMI Ball Roller

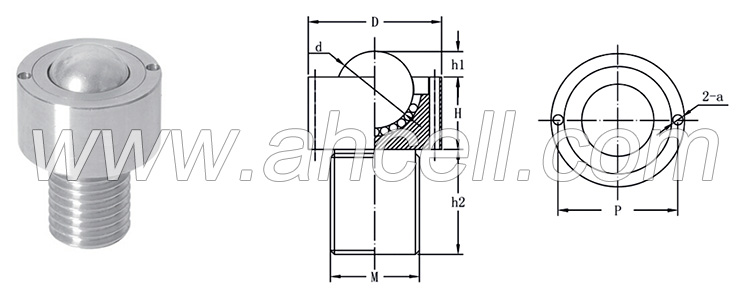

Model

d

D

H

h1

h2

P

a

M

Maximum Loading(kg)

Net weight

Suggested

Breaking

(kg)

BCHM-8

8.73(11/32”)

18.5

10.0±0.1

2.5

12.0

15.0

2.0

M10

5.5

7

0.042

BCHM-10

10.30(13/32”)

22.0

11.0±0.1

3.5

15.0

18.5

2.0

M12

6

8

0.065

BCHM-15

15.88(58/”)

27.0

15.0±0.1

5.3

20.0

24.0

2.5

M16

35

40

0.140

BCHM-19

19.05(3/4”)

33.0

18.0±0.1

6.3

25.0

29.6

2.5

M20

42

47

0.250



MISUMI Model Number:

Type [ M ]Material
①Main Body ②Spacer ③Main Ball ④Sub Ball
BCHM 304 Stainless Steel 304 Stainless Steel 440C Stainless Steel(HRC55~) 440C Stainless Steel(HRC55~)


Part Number L L1 H D d a P Allowable Load N(kgf)
Type M
BCHM
(Stainless Steel Ball)
10 12 2.5 10 18.5 8.73 2 15.4 55 (5.6)
12 15 3.5 11 22 10.32 18.5 62 (6.3)
16 20 5.3 15 27 15.87 2.5 24 343 (35)
20 25 6.3 18 33 19.05 29.6 412 (42)
