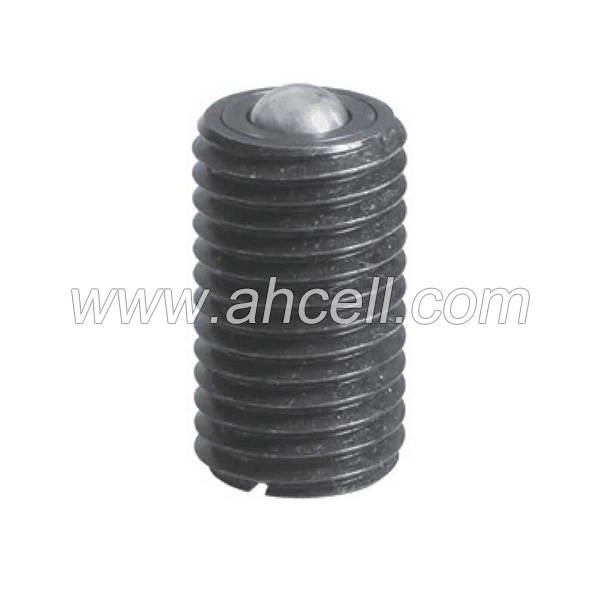

BCSB Set Screw Ball Plungers Type MISUMI Ball Rollers

BCSB Set Screw Ball Plungers Type MISUMI Ball Rollers

  • Models: LW-6 8 12 16 19 22
  • Types: BCSB, BCSBJ, BCSBJJ
  • Material: Stainless Steel, Polyacetal, PEEK
  • Ball Sizes: 6 8 10 12 16 19 20 22
  • Product description: BCSB Full Thread Body Ball Transfer Unit, Set Screw Ball Plungers, MISUMI Ball Rollers
  • INQUIRY

Full Thread Body Screw Install Type MISUMI Ball Rollers


BCSB Ball Plunger Type MISIMI Ball Roller

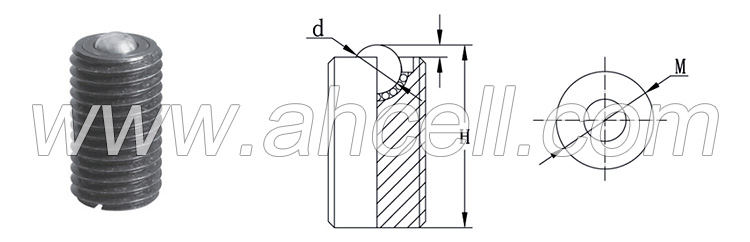

Model

d

H

h1

M

Maximum Loading(kg)

Net weight

Suggested

Breaking

(kg)

LW-6

6.35(71/4”)

20.0±0.1

1.5

M12

3

5

0.010

LW-8

7.93(5/16”)

30.0±0.1

2.0

M16

5

8

0.020

LW-12

11.90(15/32”)

45.0±0.15

3.5

M24

12

15

0.029

LW-16

15.88(5/8”)

60.0±0.2

4.0

M30

20

25

0.038

LW-19

19.05(3/4”)

70.0±0.2

5.0

M40

25

30

0.160

LW-22

22.22(7/8””)

82.0±0.2

5.5

M44

40

45

0.280



MISUMI Model Number:

Type [ M ]Material
①Main Body ②Spacer ③Main Ball ④Sub Ball
BCSB Stainless SteelXM-7 304 Stainless Steel 440C Stainless Steel(HRC55~) 440C Stainless Steel(HRC55~)
BCSBJ Polyacetal Ball
BCSBJJ Polyacetal -


Part Number L L1 D d S t Allowable Load N(kgf)
Type M BCSB BCSBJ
BCSB
(Stainless Steel Ball)
BCSBJ
(Polyacetal Ball)
8 14 1.3 5 4.76 4 5 5 (0.5) 1 (0.1)
10 16 1.2 7 4.76 5 6 14 (1.4) 7 (0.7)
12 20 1.5 8 5.56 6 8 41 (4.2) 27 (2.8)
16 25 2.5 12 8.73 8 10 55 (5.6) 34 (3.5)
20 30 3.5 15 10.32 10 12 62 (6.3) 55 (5.6)

Part Number L L1 D d E W Allowable Load N(kgf)
Type M
BCSBJJ
(Polyacetal)
8 14 1.5 6 4.76 1.5 1.2 1.5 2 (0.2)
10 16 1.7 8 5.56 2.5 1.5 2 4 (0.4)
16 25 2.8 12 8.73 3 2 3 7 (0.7)
20 30 3.5 14 10.32 3.5 3 4 11 (1.1)
