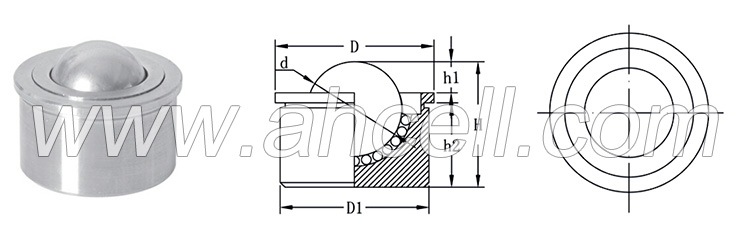

Model |
d |
D |
D1 |
H |
h1 |
h2 |
Maximum Loading(kg) |
Net weight |
|
|
Suggested |
Breaking |
(kg) |
|||||||
|

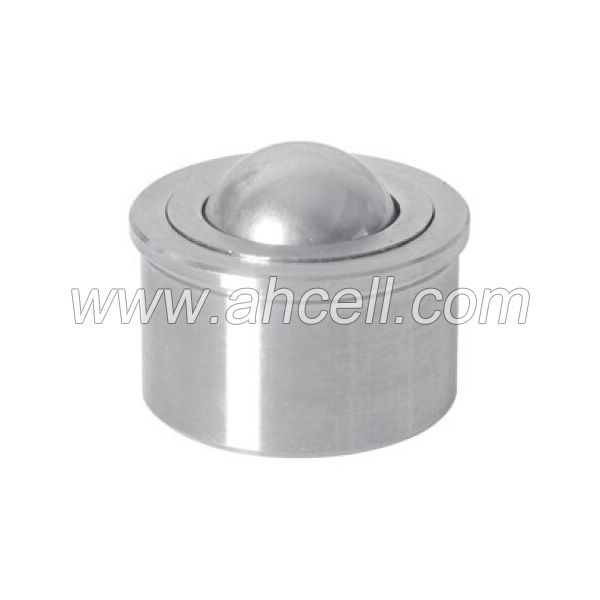

BCHA-5 |
5.56(7/32”) |
13-0.1 |
11 |
8.5±0.1 |
1.5 |
6 |
4 |
5 |
0.010 |
|
BCHA -8 |
8.73(11/32”) |
17-0.1 |
15 |
12.5±0.1 |
2.5 |
9 |
5.5 |
7 |
0.015 |
|
BCHA -10 |
10.32(13/32”) |
20-0.1 |
18 |
14.5±0.1 |
3.5 |
10 |
6 |
8 |
0.035 |
|
BCHA -15 |
15.88(5/8”) |
26-0.1 |
24 |
20.8±0.1 |
5.3 |
14 |
35 |
40 |
0.080 |
|
BCHA -19 |
19.05(3/4”) |
32-0.1 |
30 |
25.3±0.1 |
6.3 |
17 |
40 |
45 |
0.190 |
MISUMI Model Number:
| Type | [ M ]Material | |||
| ①Main Body | ②Spacer | ③Main Ball | ④Sub Ball | |
| BCHA | 304 Stainless Steel | 304 Stainless Steel | 440C Stainless Steel(HRC55~) | 440C Stainless Steel(HRC55~) |
| BCHAJ | Polyacetal Ball | |||
| BCHJJ | Polyacetal | - | ||
| BCHJP | PEEK | - | PEEK | |
| Part Number | D | L | H | L1 | d | E | C | Allowable Load N(kgf) | ||||
| Type | D1 | BCHJJ | BCHJP | BCHJJ | BCHJP | BCHJJ | BCHJP | |||||
|
BCHJJ (Polyacetal) BCHJP (PEEK) |
7 | 9 | 4 | 1 | 1.5 | - | 4.76 | - | 1.5 | 0.8 | 2 (0.2) | - |
| 9 | 11 | 5 | 1.7 | 2 | 5.56 | 6.35 | 2.5 | 1 | 4 (0.4) | 5 (0.5) | ||
| 11 | 13 | 7 | - | 2.5 | - | 7.94 | 3 | - | 6 (0.6) | |||
| 13 | 15 | 8 | 2.8 | 3 | 8.73 | 9.53 | 3.5 | 7 (0.7) | 8 (0.8) | |||
| 15 | 17 | 8 | 3.5 | - | 10.32 | - | 3.5 | 11 (1.1) | - | |||
| 20 | 22 | 11.5 | 1.5 | 5.2 | - | 15.87 | - | 5.3 | 14 (1.4) | - | ||
| 24 | 26 | 15 | 6.6 | - | 19.05 | - | 6.4 | 21 (2.1) | - | |||
| Part Number | D | L | H | L1 | d | Allowable Load N(kgf) | ||
| Type | D1 | BCHA | BCHAJ | |||||
|
BCHA (Stainless Steel Ball) BCHAJ (Polyacetal Ball) |
7.5 | 9 | 4 | 1 | 1.1 | 4 | 12 (1.2) | 6 (0.6) |
| 9 | 11 | 5 | 1.2 | 4.76 | 14 (1.4) | 7 (0.7) | ||
| 11 | 13 | 6 | 1.5 | 5.56 | 41 (4.2) | 27 (2.8) | ||
| 15 | 17 | 9 | 2.5 | 8.73 | 55 (5.6) | 34 (3.5) | ||
| 18 | 20 | 10 | 3.5 | 10.32 | 62 (6.3) | 55 (5.6) | ||
| 24 | 26 | 14 | 1.5 | 5.3 | 15.87 | 343 (35) | 69 (7) | |
| 30 | 32 | 17 | 2 | 6.3 | 19.05 | 412 (42) | 82 (8.4) | |
